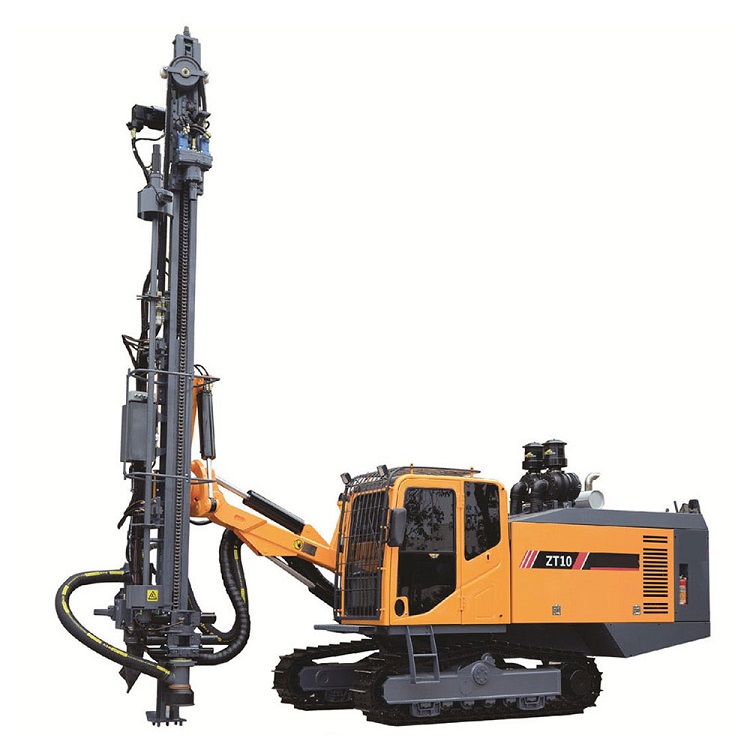

Plataforma ZT10 Drill

The ZT10 type integrated down-the-hole drilling rig utiliza el motor diésel Yuchai Guosan como un solo powerr source. Dr activa el sistema screw compressionm y el sistema hydraulic transmissionm en el same time thra través de la salida en ambos extremos. Puede drill φ90-125mm ver orificios horizontales, inclinados y hor. Se utiliza m principalmente en open-pit mines Drilling pozos de voladura y pre-split orificios en piedra works.


The drill rig está equipado con un sistema de conexión y descarga automatic rodm y un módulo drill rod lubrication m, que puede realize single-person oper70 y7536775570 The main control action of el drilling rig está integrated en un mango. Es fácil de operar. Está equipado con un sistema anti-jammingm.

También puede equiparse con drindicador de ángulo y profundidad de llenado rs, que simplif es el control of el drilling process e improves la calidad of del agujero. Eff sistema de recolección de polvo eficientem, cabina espaciosa, alta-power calefacción y enfriamiento air-condicionamiento, y equipo de audio de alta calidad

T técnico parameters of ZT10 integrated open-air DTH drill carriage

Transport size (length * height * width) 9230*2360*3260 Number of holders 7+1
weight 15000Kg Drill rod specifications Φ76*4000 mm
Rock hardness f=6-20 Impactor 35A/45A
Drilling diameter 90-130mm engine Yuchai YC6L310-H300
Ground clearance 430mm Number of cylinders 6
Track FM angle 10°up, 10°down Output Power 228KW/2200rpm
Driving speed 0-3Km/h Hydraulic pump 5× Gear pump
Gradeability 25° Screw Compressors Zhejiang Kaishan
Traction 120KN Air volume 18m³/min
Torque 2800Nm Wind pressure 17Bar
Rotating speed 0-120rpm Driving control system Hydraulic pilot
Boom lift Up 47 [deg.], Downward 20 ° Drilling control system Hydraulic pilot
Drill boom swing angle 50° to the right, 20° to the left Anti-jam Automatic electro-hydraulic anti-sticking
Slide angle 95° to the right, 35° to the left Voltage 24V, DC
Carriage pitch angle 114° Safety cab Comply with anti-rock falling & anti-rollover standards
Compensation stroke 1353mm Indoor noise level Less than 85dB ( A )
Propeller stroke 4490mm Seat Adjustable
Maximum thrust 25KN air conditioning Standard heating and cooling
Propulsion method Motor + roller chain entertainment Radio +Mp3
Automatic drilling depth 32m
