KT15 Drill Aparejo

Introducciones

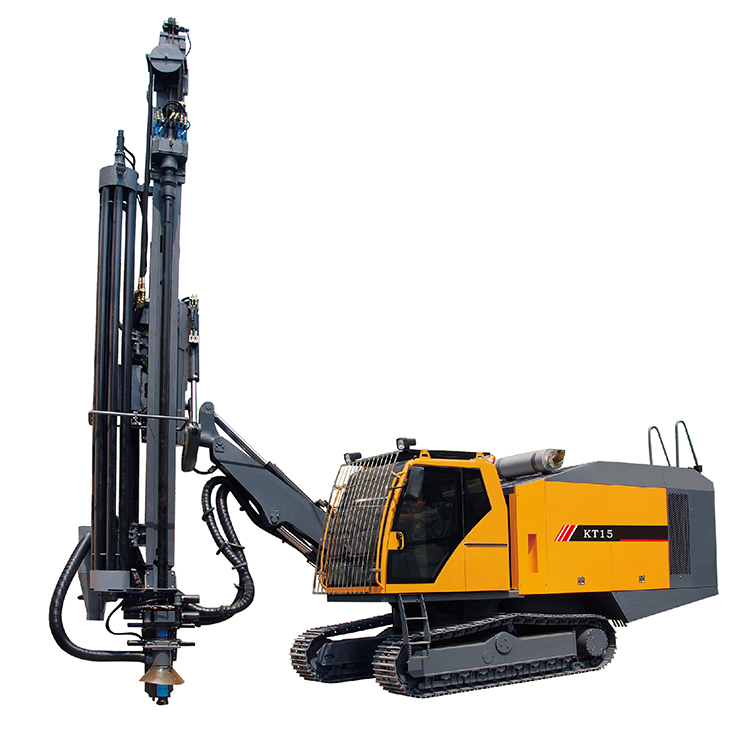

The KT15 integrated open-pit rig DTH drill es un nuevo tipo of rock drilling equipment carefully diseñados for las necesidades of large open-pit mines basa en rigs years of development y production of DTH. The drilling rig's walking, propulsion, rrotation, and angle adjustment are all hydraulically driven, with strong power; equipado con high-pressure screw head y high-pressure pneumatic impactor, high drilling efficiency; equipado con colector de polvo hydraulic dry colector de polvor Recoger el polvo y r reducir la contaminación ambiental ronmental; equipado con rod hydraulic reeling mechanism a remove la rod drill, floating joint a protect la thread of la rod drill, rod automatic dispositivo reeling a la intensidad labor reduce, air-conditioned taxi para provide un comfortable working environment y automatic control a prevent jams The válvula reduces la chance of atascado drilling. The drilling rig tiene las characteristics of buena integrity, alta degree of automation, buena rock effect drilling, protection environmental y energy-saving, operation conveniente, maneuverability flexible y driving safe.


Features of KT15 tipo integrated open-air DTH drill carriage

1. The prLa longitud de la opulsión es de hasta 5 meters a time, que effectivamente reduce los auxiliaresry time como la carga y descarga de tuberías drill y imp753675115oves50

2. Tipo de disco automatic rod cambiando el sistemam, efficient y precise action, automatic rod cambiando drill profundidad hasta 35 meters;

3. The ángulo de oscilación of la carriage adopta una optimized luffing mechanism, con un ángulo de giro total de of 130° (right 97°, 33° left), y la conversion entre agujeros vertical y agujeros horizontal puede completed freely sin cambiar la fulcrum; la altura del agujero horizontal minimum hor es de 550 ㎜, hasta 4500;

4. Usando el motor Cummins electronic injection, strong power y reliable performance;

5. Adopte la salida arrangement en ambos extremos of un solo motor -, compact structure, y un conveniente mantenimiento m;

6. Viento fuerte pressure y large displacement air compression system (22m 3 /min, 20bar), que ensures el rapid o753675115

7. Muy integrated control system, friendly control interface, one person can freely control toda la máquina m;

8. The autom nivelación automática f function of the walking mechanism makes the drill rig more adaptable a rugged mountain road en el mine;

The double-brazing mechanism guía la herramienta de fresado dr thra través de todo el proceso hasta la prevent deflection during drilling (guíe el impactorfilling) al abrir el

T técnico parameters of KT15 tipo integrated open-air DTH drill carriage

Rock drilling hardness f=6-20
Drilling diameter mm 135-190
Economic drilling depth (automatic extension depth) m 35
Walking speed Km/h 3.0
Climbing ability ° 25°
Ground clearance mm 430
Whole machine power Kw 298
diesel engine Cummins QSZ13-C400
Screw machine displacement m 3 /min twenty-two
Maximum exhaust pressure of screw machine bar 25
System working pressure bar 20
Overall dimensions (length × width × height) mm 11500×2716×3540
Heavy volume Kg 23000
Rotating speed r/min 0-118
Rotation torque N*m 4100
Maximum push-pull force N 65,000
Pitch angle of carriage 125°
Slide angle Right 97 ° to the right 33 °
Drill boom swing angle Right 42 ° left 15 °
Frame leveling angle Up 10° Down 10°
Push length at a time mm 5000
Compensation length mm 1800
Impactor 55A/65A
Drill rod ( φ diameter × drill rod length) mm φ89×5000/φ102×5000
Dust removal method Dry-type (hydraulic driven cyclone laminar flow type)

/ Wet ( optional )

Connection method Automatic connection rod
Automatic anti-card mode Electro-hydraulic control anti-stuck
Drill pipe lubrication method Automatic oil injection lubrication
Drill pipe thread protection Equipped with a floating joint to protect the drill pipe thread
Drilling display Real-time display of drilling angle and drilling depth
