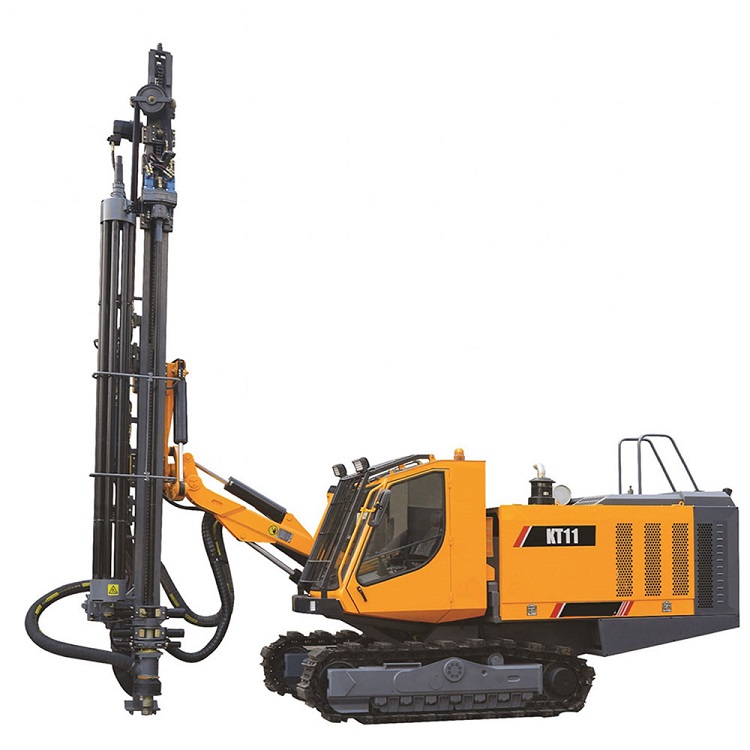

Type integrated down-the-hole drilling rig usa Cummins Guosan motor diesel como un solo power source y sim simultáneamente drives el screw compr705ession en ambos extremos del sistema hidráulico75369070570570m Puede drill φ90-125mm ver orificios horizontales, inclinados y hor, mainly utilizado al aire libre Drilling of pozos de voladura y pre- orificios divididos en mines y piedra works.
The drill rig está equipado con un sistema de conexión y descarga automatic rodm y un módulo drill rod lubrication m, que puede realize single-person oper70 y7536775570 The main control action of el drilling rig está integrated en un mango. Es fácil de operar. Está equipado con un sistema anti-jammingm. También puede equiparse con drindicador de ángulo y profundidad de llenado rs, que simplif es el control of el drilling process e improves la calidad of del agujero.
Eff sistema de recolección de polvo eficientem, cabina espaciosa, alta-power calefacción y enfriamiento air-condicionamiento, y equipo de audio de alta calidad
| Transport size (length * height * width) | 9100*2520*3600 | Number of holders | 7+1 |
| weight | 15500Kg | Drill rod specifications | Φ76*4000 mm |
| Rock hardness | f=6-20 | Impactor | 35A/45A/55A |
| Drilling diameter | 90-140mm | engine | Cummins QSL8.9-C325-30 |
| Ground clearance | 420mm | Number of cylinders | 6 |
| Track FM angle | 10°up, 10°down | Output Power | 242KW/2200rpm |
| Driving speed | 0-4Km/h | Hydraulic pump | 5× Gear pump |
| Gradeability | 25° | Screw Compressors | Zhejiang Kaishan |
| Traction | 120KN | Air volume | 18m³/min |
| Torque | 2800Nm | Wind pressure | 18Bar |
| Rotating speed | 0-120rpm | Driving control system | Hydraulic pilot |
| Boom lift | Up 47 [deg.], Downward 20 ° | Drilling control system | Hydraulic pilot |
| Drill boom swing angle | 50° to the right, 21° to the left | Anti-jam | Automatic electro-hydraulic anti-sticking |
| Slide angle | 95° to the right, 35° to the left | Voltage | 24V, DC |
| Carriage pitch angle | 114° | Safety cab | Comply with anti-rock falling & anti-rollover standards |
| Compensation stroke | 1353mm | Indoor noise level | Less than 85dB (A) |
| Propeller stroke | 4490mm | Seat | Adjustable |
| Maximum thrust | 25KN | air conditioning | Standard heating and cooling |
| Propulsion method | Roller chain | entertainment | Radio +Mp3 |
| Automatic drilling depth | 32m |
