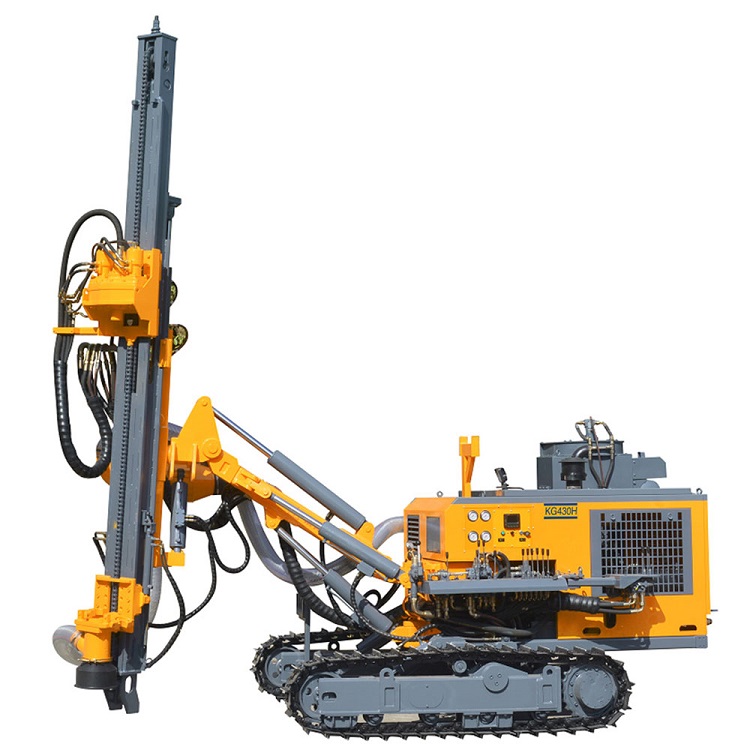

Open-air DTH drill rig es nuevo equipment upgraded in response to the country environmental protection requirements. Equipado con el motor four-cylinder National III de Yuchai a meet the country requirements for emissions y environmprotectionental. Adopte zambullidar caminando motor, hemmed crawler frame, y engineering four- correa de rueda para increase working e incrustación de. Incr alivie el tono y boom cylinders a meet el requirements of extreme posiciones.
En el same time, el sistema hidráulico hidráulicom está actualizado para incr facilitar el sistemam f bajo e incr reducir la velocidad de rotación r. The gyrator adopta un doble -motor reducer a incrfácil el turning arque y velocidad. To incr suelte el lifting cylinder y la cadena, improve el lifting force y reliability. Reinforce la guía rail e incr suelte las placas upper y lower wear of la placa deslizante para extender el service life. Tla guía rail adopta una instalación inclinada, que es conveniente for operation y observation. The cover es f doblado con thicker profiles para increnganche strength y rigidity, y la elevación r se agrega para facilitar la carga, descarga y elevación.
T el tipo KG430H agrega un colector de polvor y adopta un cilindro de aceite de captura de polvo doble -rs, que are more environm mentalmente fr y r confiable cuando wore.
| model | KG430 | KG430H |
| weight | 5300kg | 5700kg |
| size | 6000*2250*2700mm | 6000*2400*2700mm |
| Rock drilling hardness | f=6-20 | |
| Drilling diameter | Φ90-152mm | |
| Economic drilling depth | 25m | |
| Rotation speed | 75r/min | |
| Rotation torque | 5000N·m | |
| Lifting power | 40KN | |
| Propulsion method | Cylinder – plate chain | |
| Advance itinerary | 3175mm | |
| Walking speed | 0-2.5Km/h | |
| Gradeability | 30° | |
| Ground clearance | 500mm | |
| Pitch angle of carriage | Pitch 135° and raise 50° | |
| Swing angle of carriage | Left 91° Right 5° | |
| Drill boom pitch angle | Pitch 55° and raise 15° | |
| Boom swing angle | Left 44° Right 45° | |
| Track adjustment angle | ±10° | |
| Sliding frame compensation length | 900mm | |
| diesel engine | YC4DK80-T302(58KW/2200r/min) | YC4DK100-T304(73KW/220r/min) |
| Drill pipe | 76*3m | |
| The highest and lowest holes | Minimum 350mm, maximum 2850mm | |
