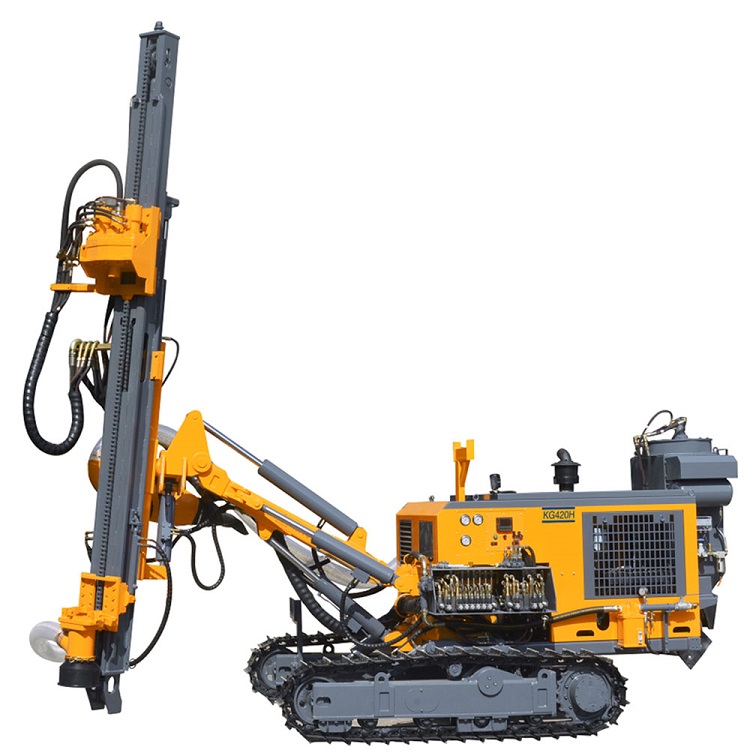

Open-air DTH drill rig es nuevo equipment upgraded in response to the country environmental protection requirements. Equipado con el motor four-cylinder National III de Yuchai a meet the country requirements for emissions y environmprotectionental. Adopte zambullidar caminando motor, hemmed crawler frame, y engineering four- correa de rueda para increase working e incrustación de. Incr alivie el tono y boom cylinders a meet el requirements of extreme posiciones.
En el same time, el sistema hidráulico hidráulicom está actualizado para incr facilitar el sistemam f bajo e incr reducir la velocidad de rotación r. The gyrator adopta un doble -motor reducer a incrfácil el turning arque y velocidad. To incr suelte el lifting cylinder y la cadena, improve el lifting force y reliability. Reinforce la guía rail e incr suelte las placas upper y lower wear of la placa deslizante para extender el service life.
Tla guía rail adopta una instalación inclinada, que es conveniente for operation y observation. The cover es f doblado con thicker profiles para increnganche strength y rigidity, y la elevación r se agrega para facilitar la carga, descarga y elevación.
Tel tipo KG420H agrega un colector de polvor y adopta un cilindro de aceite de captura de polvo doble-rs, que are more environmentalmente friendly y rfiable cuando wore.
| model | KG420 | KG420H |
| weight | 5200kg | 5700kg |
| size | 5900*2250*2700mm | 5900*2250*2700mm |
| Rock drilling hardness | f=6-20 | |
| Drilling diameter | Φ90-152mm | |
| Economic drilling depth | 20m | |
| Rotation speed | 60r/min | |
| Rotation torque | 5000N·m | |
| Lifting power | 40KN | |
| Propulsion method | Cylinder – plate chain | |
| Advance itinerary | 3175mm | |
| Walking speed | 0-2.5Km/h | |
| Gradeability | ≤30° | |
| Ground clearance | 500mm | |
| Pitch angle of carriage | Pitch 130° and raise 35° | |
| Swing angle of carriage | Left 91° Right 5° | |
| Drill boom pitch angle | Pitch 50° and raise 25° | |
| Boom swing angle | Left 45° Right 45° | |
| Track adjustment angle | ±10° | |
| Sliding frame compensation length | 900mm | |
| diesel engine | YC4DK80-T302(58KW/2200r/min) | YC4DK100-T304(73KW/220r/min) |
| Drill pipe | 76*2m+76*3m | |
| The highest and lowest holes | Minimum 350mm, maximum 2750mm | |
