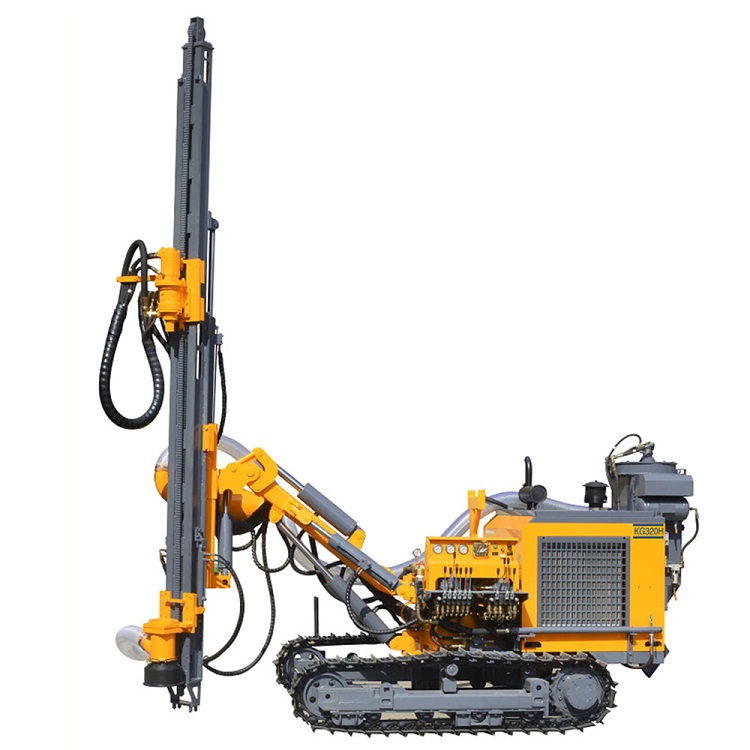

KG320 Drill Aparejo

Un open-air DTH drill rig es nuevo equipment upgraded in response to the country environmental protection requirements. Equipado con el motor four-cylinder National III de Yuchai a meet the country requirements for emissions y environmprotectionental. Adoptando zambullidar caminando motor, engineering four-wheel area, increase working pressure e increase climbing pe7511367556750. Incr alivie el tono y boom cylinders a meet el requirements of extreme posiciones.


En el same time, el sistema hidráulico hidráulicom está actualizado para incr facilitar el sistemam f bajo e incr reducir la velocidad de rotación r. Optimize el lifting cylinder a improve reliability. Tla guía rail adopta una instalación inclinada, que es conveniente for operation y observation. The cover adopta thicker profiles y agrega izado r, lo cual es conveniente for para cargar, descargar y izar.

T el tipo KG320H agrega un colector de polvor y adopta el cilindro de captura de polvo – doblers, que are more environm mentalmente fr amigable y r confiable cuando se trabaja con wor.

T técnico parameters of KG320/KG320H abierto-air DTH drill carr

model KG320 KG320H
weight 4500kg 4700kg
size 6050*2360*2700mm 6050*2360*2700mm
Rock drilling hardness f=6-20
Drilling diameter Φ80-105mm
Economic drilling depth 25m
Rotation speed 140r/min
Rotation torque 1850N·m
Lifting power 20KN
Propulsion method Cylinder – plate chain
Advance itinerary 3820mm
Walking speed 0-2.2Km/h
Gradeability ≤30°
Ground clearance 465mm
Pitch angle of carriage Pitch 135° and raise 50°
Swing angle of carriage Left 100° Right 45°
Drill boom pitch angle Pitch 50° and raise 25°
Boom swing angle Left 44° Right 45°
Sliding frame compensation length 900mm
diesel engine Yuchai Power YCD4R23T8-80(59KW/2400r/min)
Drill pipe 64*3m
The highest and lowest holes Minimum 350mm, maximum 2750mm
