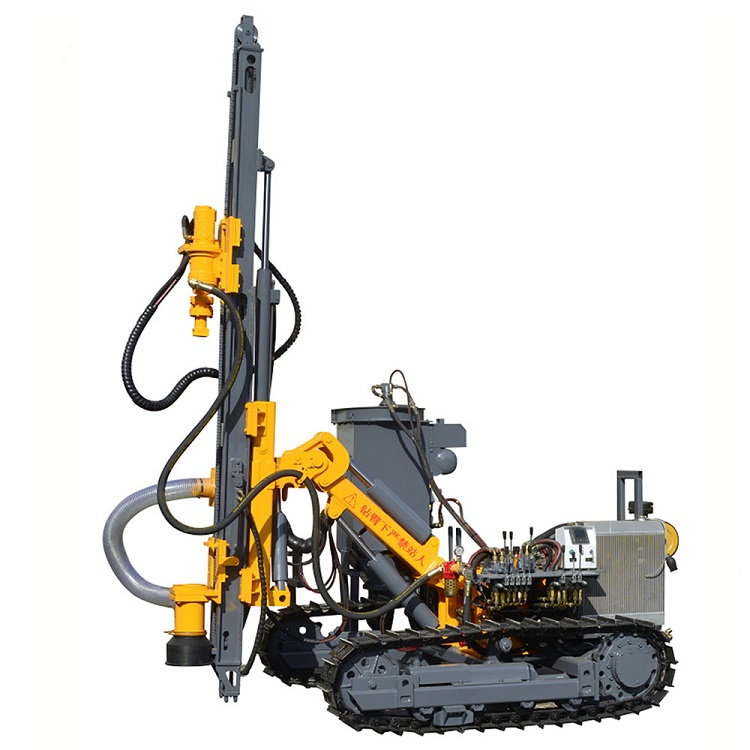

The KG310/KG310H open-air DTH drill rig es nuevo equipo Equipado con dos motores -cylinder National III de Yuchai para meet el conteo ry requirements for emissions y environmental prprotección. The f flexible luffing mechanism can meet the function of drilling low-level hor agujeros horizontales.
En el same time, el sistema hidráulico hidráulico m está actualizado para incr facilitar su sistema m f bajo e incr reducir la velocidad de rotación r. Optimize el lifting cylinder to improve su reliability, strenlace la guía rail e incr suelte las placas upper y lowr wear of la placa deslizante para extender el li67503755evice. Agregue grúas de elevación r (placas) a f para facilitar la carga, descarga y elevación.
T el tipo KG310H agrega un colector de polvor y adopta un cilindro de captura de polvo – doblers, que are more environm mentalmente fr amigable y r confiable cuando se trabaja con wor.
model | KG310 | KG310H |
weight | 4000kg | 4200kg |
size | 4650*2000*2200mm | 4650*2500*2200mm |
Rock drilling hardness | f=620 | |
Drilling diameter | Φ80-105mm | |
Economic drilling depth | 20m | |
Rotation speed | 110r/min | |
Rotation torque | 1650N·m | |
Lifting power | 18KN | |
Propulsion method | Cylinder – plate chain | |
Advance itinerary | 2670mm | |
Walking speed | 0-2.0Km/h | |
Gradeability | ≤30° | |
Ground clearance | 250mm | |
Pitch angle of carriage | Tilt 145°, tilt 55° | |
Swing angle of carriage | Left 100° Right 45° | |
Drill boom pitch angle | Pitch 50° and raise 25° | |
Sliding frame compensation length | 900mm | |
diesel engine | Yuchai YCCA13T6-45 (33.1KW/2400r/min) | |
Drill pipe | 60*2m | |
The highest and lowest holes | Minimum 360mm, maximum 2650mm |
